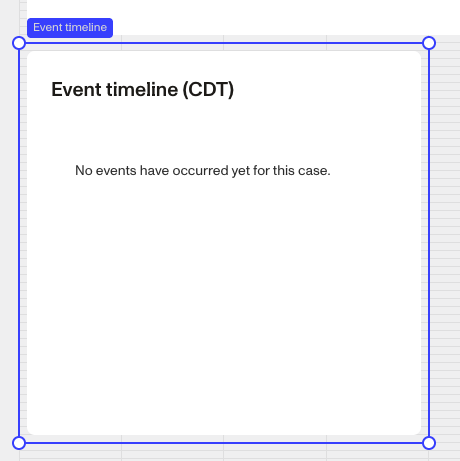

What is the Case Event timeline module?

The Case Event timeline module is a prebuilt component that can be added to a Case Template. It displays all events associated with the Case. You can also customize when fields are displayed on the module and define logic that governs when it appears.

The Event Timeline module is useful for reviewing the order of events that occurred for the Case you are viewing as well as any attached objects to the Case. It is especially valuable for debugging issues like missing field values, errored workflows, missing attached objects, race conditions between different processes, and potential operational improvements such as team SLAs or when cases are assigned.

How do you add a Case Event timeline module?

1. Navigate to the Dashboard, and click on Cases > Templates.
2. Find and click on the Case template you want to edit, or Create a new template.
3. Navigate to the Tab you want to add a Case component to. Click an empty space to view the Component Library.

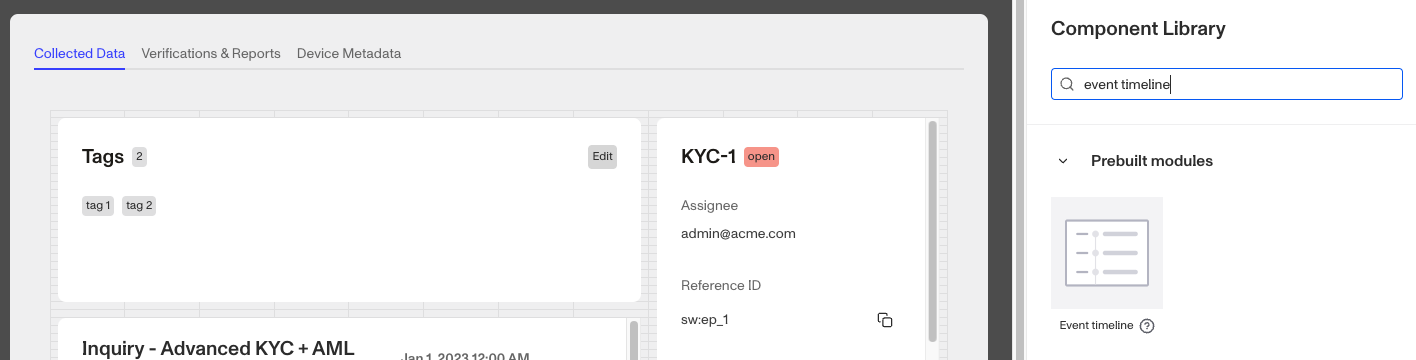

4. In the right toolbar, search for ‘Event timeline.’
5. Drag and drop the Event timeline module into your Case UI and reposition it by dragging it around.

6. Click on the Event timeline module on the right toolbar you can customize how information is displayed on the module.
   1. Under Module Layout, you can change:
      1. Dynamic height: Module will grow or shrink to fit its contents.
      2. Visibility: Dynamically control whether the module is hidden. This is a toggle button that lets you set conditions for when the button should be displayed or hidden from view based on your case requirements. You can read more about Visibility Configuration below.
   2. Under Advanced Options > Module Enablement, you can define custom control conditions that determine when the Event timeline module is enabled or disabled. Advanced options are typically configured for specific customers by a Persona team member.
7. Click the “Delete” button if you want to remove the component from the Case UI.

Visibility Configuration

If you toggle this on you will have two options to customize visibility.

1. Basic visibility allows you to set rules on the Event timeline module to determine when it will be visible. You can read more about Basic Visibility Configuration below.
2. Advanced visibility allows you to set logic to control when the Event timeline module is enabled or disabled based on custom conditions. Advanced options are typically configured for specific customers by a Persona team member.

Basic Visibility Configuration

Visibility configuration consist of three main components:

1. Field: The object that will have a condition linked to it.
2. Condition: How the field is compared to the value (e.g., equals, does not equal).
3. Value: The value to test against.

Creating Visibility Configuration

• AND Statements: Combine multiple conditions that must all be true for the rule to pass. Add these using the "Add" button.
• OR Groups: Combine conditions where only one needs to be true for the rule to pass. Create these by clicking "Add OR Group".

How to Use Visibility Configuration

1. Click on the Event timeline module, and go to Module Layout and toggle the button next to Visibility in the right toolbar.
   1. Click on “Empty rule” to see Visibility Configuration.
   2. Create a logical rule by filling in the three boxes following Show if, which correspond to an object, its condition, and its value being assessed, respectively. When that logical rule passes, the Event timeline module is shown.
   3. (Optional) Add additional logical rules by clicking either ”Add” (if you want to add 'AND' rules, where all must be passed to continue) or ”Or group” (if you can also nest a group of OR statements within an AND statement).

Plans Explained

Case Event timeline module component by plan

Learn more about pricing and plans.
